Registering assets

An Asset is any image, video, audio file or any other kind of content resource. A primary function of the platform is Asset Delivery:

IIIF Image API endpoints
IIIF Auth Services for access control on any kind of file or service
Optimised thumbnail services for fast UI
Transcoding audio and video to web formats

You need to tell the platform about your assets in order for it to provide these services for them. Registering an asset is not quite the same as uploading or ingesting an asset, although often (but not always) the platform will make a copy of your original asset and store it.

Delivering assets

The platform provides multiple ways of delivering your assets. For example, a single image asset can be made available in multiple ways:

as the original registered image, for download
as a IIIF Image Service capable of returning any region or size (including tiles for deep zoom)
as a IIIF Image Service that just provides static sizes

The delivery of assets to your audience is on one domain - for example, an image service at:

https://dlcs.io/iiif-img/wellcome/5/b20408535_0007.jp2

…serves images, for example:

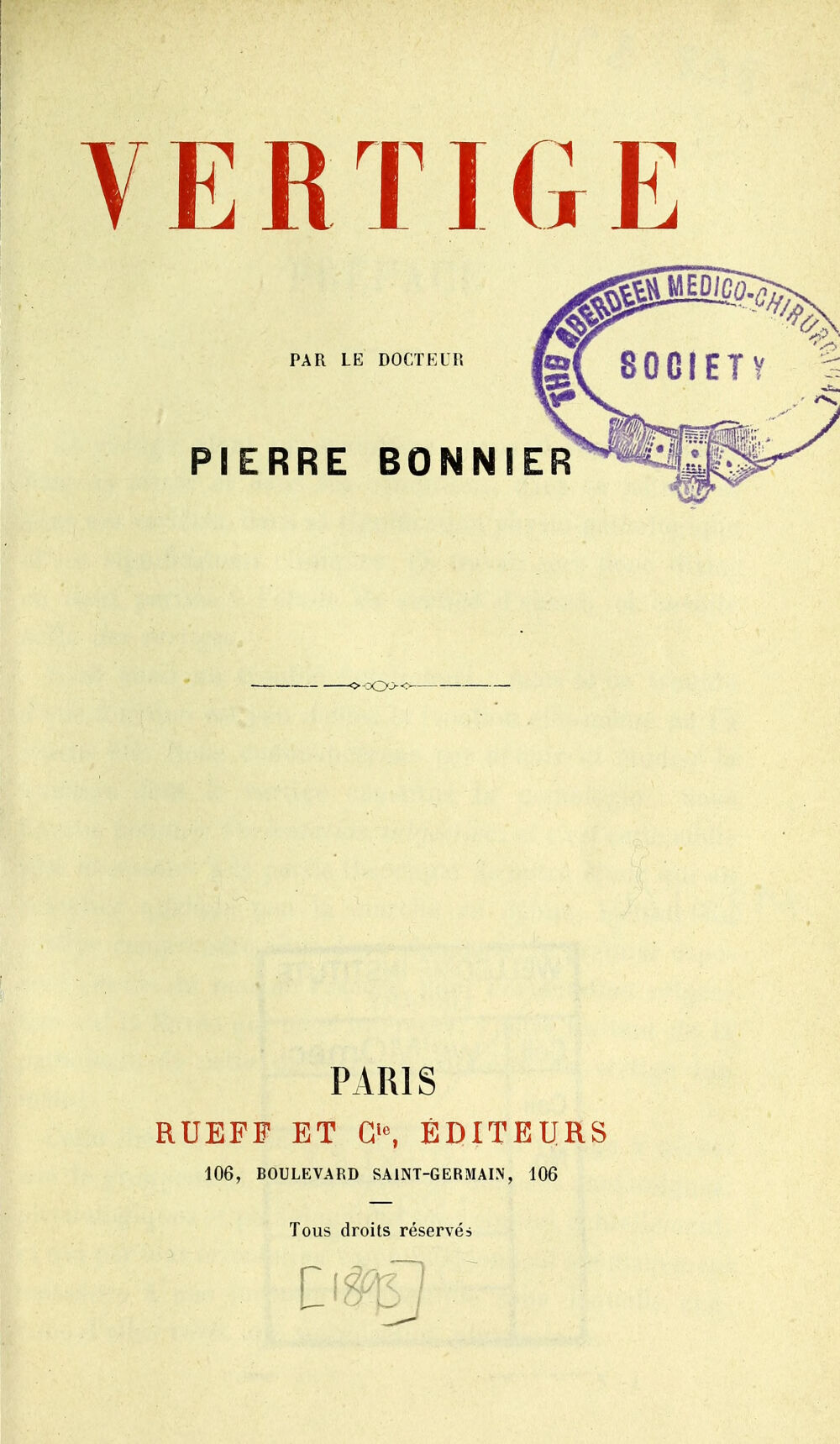

https://dlcs.io/iiif-img/wellcome/5/b20408535_0007.jp2/full/1000,/0/default.jpg.

You might, however, proxy this address, as Wellcome do, so that is appears as their own domain:

https://iiif.wellcomecollection.org/image/b20408535_0007.jp2/full/1000,/0/default.jpg.

Whether proxied or not, these are the public resources of the platform (even if some or all of them are access-controlled).

Assets in the platform have public endpoints, for content delivery to your users.

Assets as IIIF-CS API Resources

Every asset in the platform is also a resource in the IIIF-CS API. In the following examples, the public hostname of the platform is dlcs.example. Every asset has an API resource served at api.dlcs.example. For example, the API URI https://api.dlcs.example/customers/99/spaces/5/images/b2921371x_0001.jp2 will (if you have credentials) return:

{
  "@context": "https://dlcs.github.io/vocab/context/future.json",
  "@id": "https://api.dlcs.example/customers/99/spaces/5/images/b2921371x_0001.jp2",
  "@type": "vocab:Image",
  "id": "b2921371x_0001.jp2",
  "mediaType": "image/jp2",
  "space": 5,

  "origin": "https://s3-eu-west-1.amazonaws.com/example-bucket/digitised/b2921371x/v1/data/objects/b2921371x_0001.jp2",
  "created": "2023-07-20T09:56:39.0649160Z",
  "batch": "https://api.dlcs.example/customers/99/queue/batches/871143",
  "ingesting": false,
  "finished": "2023-07-20T09:56:50.5261830Z",
  "error": "",

  "duration": 0,
  "width": 8008,
  "height": 5754,

  "deliveryChannels": [
    {
      "@type": "vocab:DeliveryChannel",
      "channel": "iiif-img",
      "policy": "use-original"
    },
    {
      "@type": "vocab:DeliveryChannel",
      "channel": "thumbnail",
      "policy": "https://api.dlcs.example/customers/99/deliveryChannelPolicies/thumbnail/standard"
    },
    {
      "@type": "vocab:DeliveryChannel",
      "channel": "file",
      "policy": "none"
    }
  ],

  "manifest": "https://dlcs.example/iiif-manifest/99/5/b2921371x_0001.jp2",

  "roles": [],
  "maxWidth": 0,
  "openFullMax": 0,
  "openMaxWidth": 0,

  "tags": [],
  "string1": "b2921371x",
  "string2": "b2921371x",
  "string3": "b2921371x",
  "number1": 0,
  "number2": 0,
  "number3": 0,

  "adjuncts": "https://api.dlcs.example/customers/99/spaces/5/images/b2921371x_0001.jp2/adjuncts",

  "metadata": "https://api.dlcs.example/customers/99/spaces/5/images/b2921371x_0001.jp2/metadata",
  "storage": "https://api.dlcs.example/customers/99/spaces/5/images/b2921371x_0001.jp2/storage"
}

The space property indicated what Space the asset lives in. Spaces are used to organise assets.
The origin property tells the platform where to fetch the asset from (and where it was fetched from).
The deliveryChannels property specifies how the platform makes your asset (or its derivatives) available.
The manifest property links to a document that contains all the outputs the platform is providing for the asset.
The roles property allows for access control (none in this case).
The tags, string* and number* properties are arbitrary metadata stored with the asset for your own application purposes.
The adjuncts property links to any associated files you want to store for the asset, or associated files the platform has itself generated for the asset.

Registration of assets

An asset can be registered via the API as an API resource, like the above in one of four ways:

HTTP POST an asset API object into a Space
HTTP PUT an asset API object to its API address directly
Include the asset as a member of a Collection that is HTTP Posted to a Queue
Include the asset when creating or updating a IIIF Manifest Manifest

The first two are more common for ad hoc, one-at-a-time asset registration. The third is recommended for systems integration and other workflows. As a customer, you have a Queue that you POST Hydra Collections of assets to.

You can also register assets in the user interface of the portal, or using a command line application or helper library. These all internally use one of the methods above.

HTTP PUT

Before you can register an asset, you need to create a Space for it to live in. If we assume Space 37 already exists, at a minimum, a registration for an image (or any other type of asset) looks like this:

PUT /customer/99/spaces/37/images/my-image.tiff
{
  "mediaType": "image/tiff",
  "origin": "https://example.org/images/my-image.tiff"
}

💻 HTTP PUT Registering an asset that references an origin

The PUT address is the API resource address of the asset. PUT is used for both creation and updating; here, assume we are creating the asset for the first time. The last path element of the PUT address looks like a filename in this example, but it can be any string that’s a valid URL path element.

Only two fields have been used:

mediaType: the internet content type (also known as MIME type) of the asset you are registering.
origin: an HTTP(S), (S)FTP or AWS S3 URL from where the platform can fetch the image.

This PUT body did not specify any deliveryChannels, and is relying on configured defaults to provide the asset with suitable values for this property. Unless you have manually deleted them, you will already have defaults.

If the supplied mediaType is an image (as in this case), the asset will be processed synchronously and the platform will return the finished state of the registration. It will look very much like the example at the start of this page, except that:

The batch property will be empty
The string* and number* properties will be empty strings or 0
The @id will be the address you PUT the image to (and will appear in the other links to child properties)

For AV mediaTypes, the platform returns an API asset resource immediately, before it has been processed - its ingesting property will be true.

As this asset was an image, and default delivery channels will create a IIIF Image API endpoint for an image, the returned asset has an imageService property:

{
    // ...
    "imageService": "https://dlcs.example/iiif-img/99/37/my-image.tiff",
    // ...
}

This is the public endpoint for deep zoom and arbitrary region requests. If you request it directly, you get the IIIF Image Information document (the info.json). You can open the service in a viewer like this:

https://theseusviewer.org/?iiif-content={imageService}

POST a collection to a queue

This is the preferred method for large numbers of assets and for building workflows and systems integration. It can be used to register a single asset:

POST /customer/99/queue
{
  "@type": "hydra:Collection",
  "member": [
    {
      "id": "my-image.tiff",
      "space": 37,
      "mediaType": "image/tiff",
      "origin": "https://example.org/images/my-image.tiff"
    }
  ]
}

💻 HTTP POST to Queue Registering an asset by POSTing to a queue

Here, we needed to supply an additional field of the asset - its Space. The queue can take assets destined for any space, even in the same PST payload.

The @type property isn’t actually required by the platform but is included for clarity; this body is a Hydra Collection (not a IIIF Collection).

The HTTP response is a 201 Created status, and the response body is a Batch - a submitted job of assets.

The above payload will create an asset API resource immediately at /customer/99/spaces/37/images/my-image.tiff, but will process it asynchronously; its corresponding IIIF Image Service won’t be available straight away. If you have a lot of assets on your queue already, this one will have to wait its turn.

POST to queue with metadata

Another example, showing multiple assets, and use of metadata:

POST /customer/99/queue
{
  "@type": "hydra:Collection",
  "member": [
    {
      "id": "PP_AA_B_C_0001",
      "space": 37,
      "mediaType": "image/tiff",
      "origin": "https://example.org/images/PP_AA_B_C_0001.tiff",
      "string1": "PP_AA_B_C",
      "number1": 1
    },
    {
      "id": "PP_AA_B_C_0002",
      "space": 37,
      "mediaType": "image/tiff",
      "origin": "https://example.org/images/PP_AA_B_C_0002.tiff",
      "string1": "PP_AA_B_C",
      "number1": 2
    },
    {
      "id": "PP_AA_B_C_0003",
      "space": 37,
      "mediaType": "image/tiff",
      "origin": "https://example.org/images/PP_AA_B_C_0003.tiff",
      "string1": "PP_AA_B_C",
      "number1": 3
    }
  ]
}

Here, we are registering three images at once. Suppose they are the three pages of a letter in an archive. It’s useful to reconcile these three assets in the platform with our sources, and here we do that by giving all three a constant identifier in the string1 field, and a sequential index value in the number1 field (you can do this however you like). Later, we could get these three assets back, in this order, by using those values in a query, or even get the platform to generate a IIIF Manifest using a named query.

In both the above cases, the API JSON object returned by from the POST to the queue is a Batch. A batch represents a single submitted job to the platform. On your side, the concept of a job might involve multiple batches. The platform limits the number of assets in a single Collection POSTed to the queue to 100, so if the above example had been the images of a 250 page book (the job on your side), you would need to make three POSTs (e.g., of 100, 100 and 50 assets).

You can use batches to keep track of submitted assets as the platform is working on them. In the linked code example, we poll the batch until the completed count is 3. Other linking properties from the batch can be used to examine the state of the registered assets. Each asset also links back to the most recent batch it was a part of.

💻 Multiple assets to Queue Send three assets to the queue in a single job, and monitor the batch to watch them complete.
